Orienter Machine

The Orienter Machine is an advanced industrial device used in production lines to direct and organize bottles.
The primary purpose of this machine is to adjust the position and orientation of bottles in a specific manner so they can enter the next stages of production or packaging correctly.

Functions and Performance of the Orienter Machine

  • Precise Product Orientation:
    The machine converts bottles entering in random or varying directions into a standard, uniform position.
    Example: In beverage production lines, the Orienter can adjust asymmetrical bottles for precise label placement.
  • Preparation for Packaging or Filling:
    Bottles, after precise orientation, are sent to the next stage, such as filling, capping, or packaging.
  • Increased Efficiency:
    By eliminating human intervention and operating at high speed, the efficiency of the production line is significantly increased.

Key Components of the Orienter Machine

  • Feeding System:
    Products sorted by the Unscrambler are fed into this machine.
  • Orientation Mechanism:
    Uses mechanical, pneumatic, and electronic techniques to adjust product orientation.
  • Output System:
    Transfers oriented products to the next stage.
  • Electronic Controller:
    Controls the system, allowing adjustments to orientation and other settings.

JIT Machinery

Our machines are made from the highest quality components in the world.



PLC & Motors SIEMENS

Siemens PLCs (Programmable Logic Controllers) and motors are renowned for their advanced technology, reliability, and efficiency in industrial automation.

Pneumatic Cylinders & Regulators FESTO

Festo, a leading German manufacturer, is renowned for its high-quality pneumatic cylinders and regulators.

Relays PHOENIX CONTACT

Relays from Phoenix Contact are reliable components designed for industrial applications, offering efficient switching and long service life. Their range includes electromechanical, solid-state, and safety relays to meet diverse automation needs.

HMI DELTA

HMI (Human Machine Interface) systems manufactured in Taiwan are renowned for their advanced technology and reliability. They offer user-friendly interfaces and durable designs, making them ideal for various industrial applications.

Circuit Breakers HYUNDAI

Hyundai circuit breakers are high-quality electrical protection devices designed to safeguard electrical systems from overloads, short circuits, and faults.

Gearboxes YILMAZ

Yilmaz gearboxes are high-performance mechanical power transmission solutions designed for a variety of industrial applications.

Motors ELK

ELK Motors is a trusted manufacturer of high-quality electric motors designed for industrial and commercial applications.

Orientation Methods in the Orienter Machine

  • Mechanical Method:
    Uses molds, rails, or clamps to rotate and orient products.
  • Electronic and Image Processing:
    Sensors and AI-based controllers for precise product orientation.

Advantages:

  • High Precision: Ensures all products are uniformly and correctly oriented.
  • High Speed: Suitable for high-capacity production lines.
  • Flexibility: Adjustable for various product shapes and sizes.
  • Error Reduction: Minimizes human errors and product damage.

Common Applications:

  • Food Industry: Directing bottles or cans for filling.
  • Pharmaceutical Industry: Positioning pharmaceutical bottles.
  • Cosmetics and Personal Care Industry: Orienting shampoo containers or similar products.

Our Orienter Machines

We at Jit Machinery manufacture these Machines.

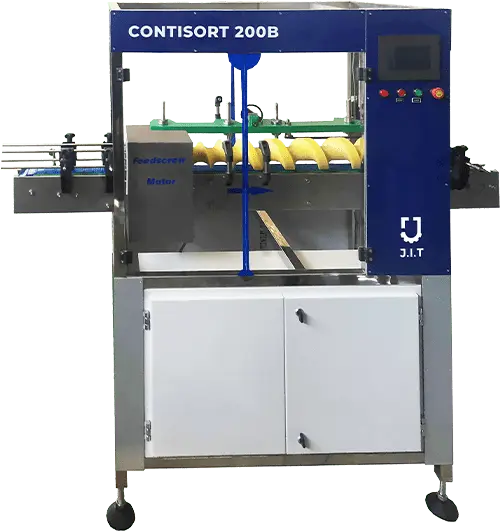

Contisort 200B

The Contisort 200B is an automated system that precisely aligns asymmetrical bottles using servo-driven rotation.

Learn More

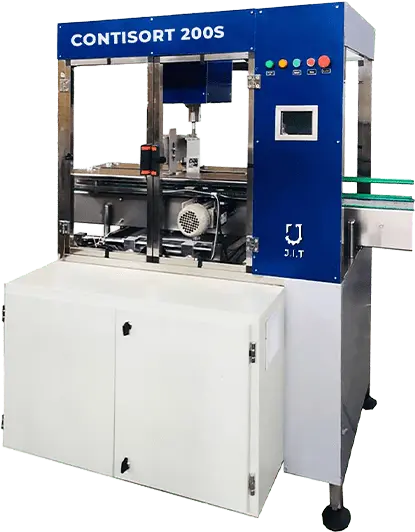

Contisort 200S

a servo-driven bottle rotator that ensures precise 180-degree alignment of plastic bottles.

Learn More
